F270 Pilot Loaded Regulator
We stock the F270 in 2" NPT with all orifice sizes in stock. Contact Us for other connection sizes or configuration questions.
Have a pilot-loaded regulator you're replacing? Contact us — we can help match the F270 to your current Fisher, Honeywell/American Meter, or Itron equivalent.

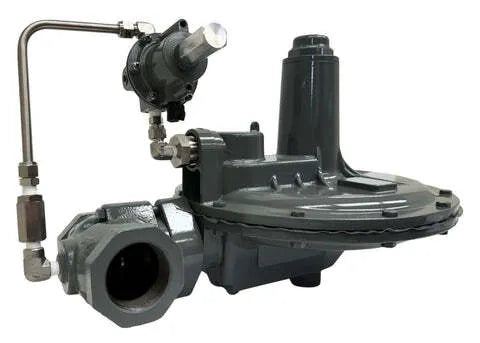

The BelGAS F270 pilot loaded pressure regulator delivers accurate, stable pressure control in a simpler, more economical design than a full pilot-operated regulator — making it a practical choice wherever that extra complexity isn't needed. It features a globe-style main regulator body paired with a factory-installed T70 pilot with pre-piped tubing, so it arrives ready to install without additional pilot setup.
The F270 provides superior performance in fixed-factor billing applications, where consistent, accurate pressure control directly affects measurement accuracy. It's available with either internal registration (F270D) or external registration (F270P, which requires a downstream control line), so you can match the setup to your piping and application. The pilot-loaded design also helps minimize the effect of sudden downstream load changes, keeping pressure control steady even as demand shifts.
Features:
- Factory-installed T70 pilot with pre-piped tubing

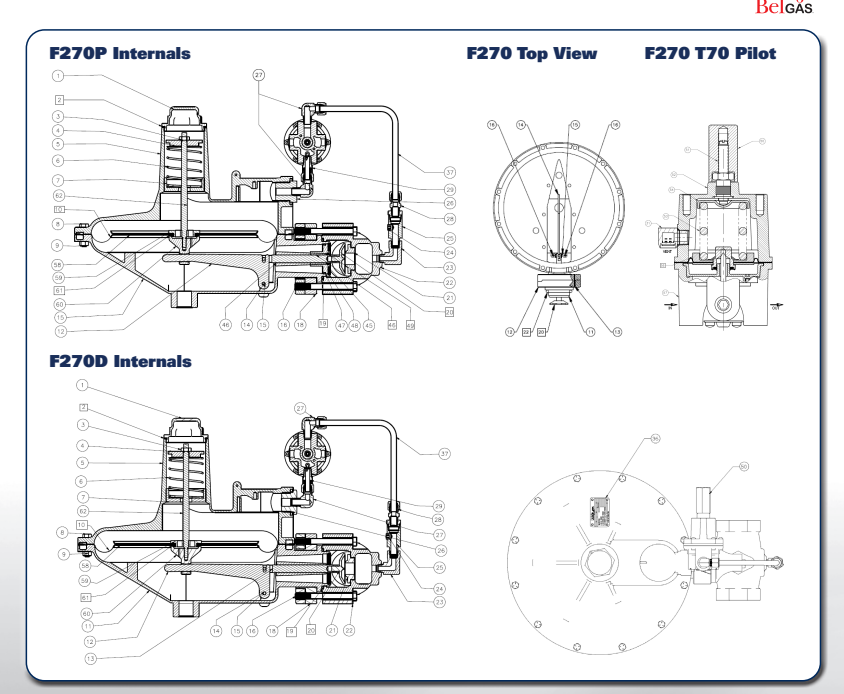

- Internal (F270D) or external (F270P) pressure registration
- Minimizes sudden downstream load change effects
- High accuracy — ideal for fixed-factor billing
- Non-relieving T70 pilot
- Ductile Cast Iron or WCB Steel body
- Can Be Set up As Worker/Monitor (Contact Us!)
Applications:
- Compressors
- Gas engines
- Service regulators
- Fixed-factor billing applications
Product Documentation:
- F270 Spec Sheet
- F270 Installation & Operation Manual (IOM)
- BelGAS 200 Series Brochure
Specifications
| Spec | Detail |
|---|---|
| Model / Series | F270 (BelGAS 200 Series) |
| Type | Pilot loaded, globe-style body |
| Pilot | Factory-installed T70 (non-relieving) |
| Port Size | 2" NPT — in stock. Also available (order-in): 1.25" NPT, 1.5" NPT, 1.5" x 2" NPT |
| Connection | NPT or Flanged — 150 RF (steel units) / 125 FF (iron units) |
| Registration | Internal (F270D) or External (F270P) |
| Orifice Sizes | All sizes in stock: 1/4", 3/8", 1/2", 5/8", 3/4", 7/8", 1", 1-3/16" |
| Max Inlet / Supply Pressure | 125 PSI (8.62 BAR) |
| Max Outlet Pressure | 35 PSI |
| Body Material | Ductile Cast Iron or WCB Steel |
| Bonnet Material | Aluminum |
| Diaphragm | Nitrile |
| Seat / Orifice Material | Aluminum |
| Temperature Range | -20°F to 180°F |
| Weight | ~30 lbs |
| Pilot Operated | Yes |
Cross-Reference
.
Replaces / Comparable to:
Brand Model / Series Notes American Meter / Elster / Honeywell 1804 PFM (1800PFM Series) Sensus 243-RPC (Pilot Operated) BelGAS F200 P1808 Norgas / NMT NGR Series
Notes
- Perfect for fixed factor billing applications!
- When a stable outlet pressure is paramount, go piloted.
