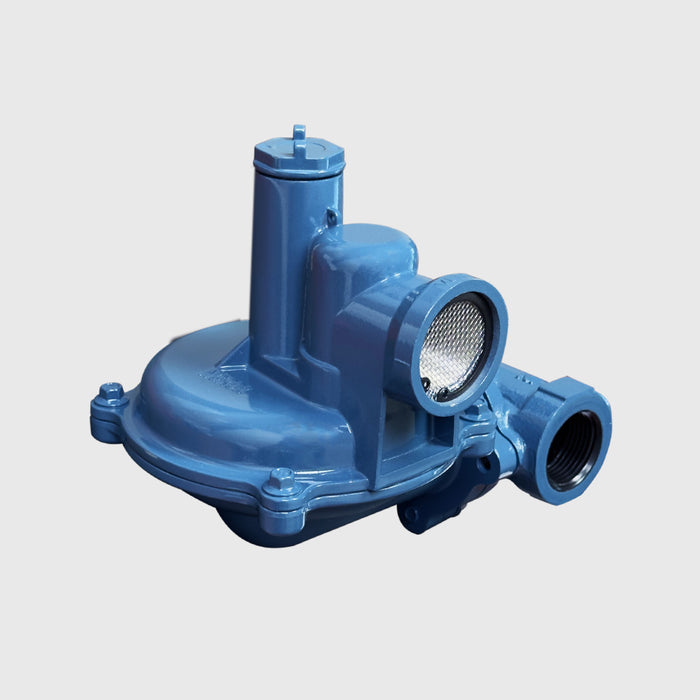

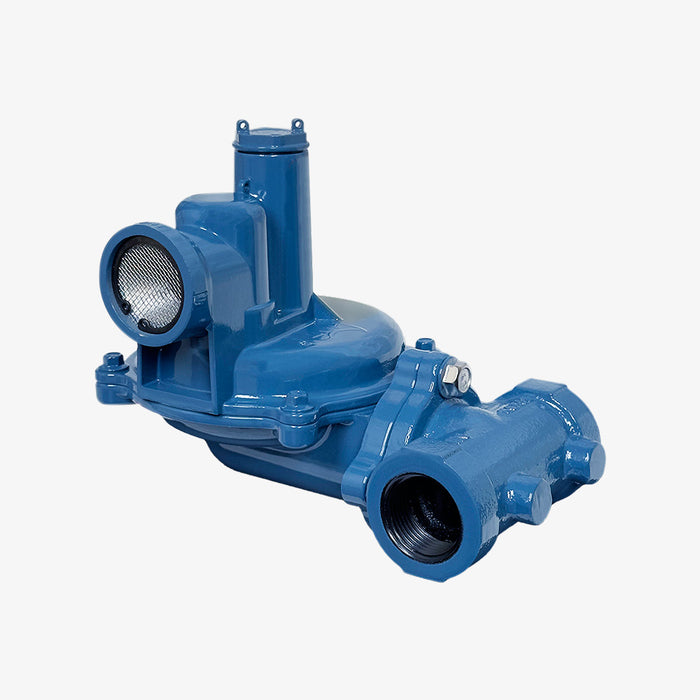

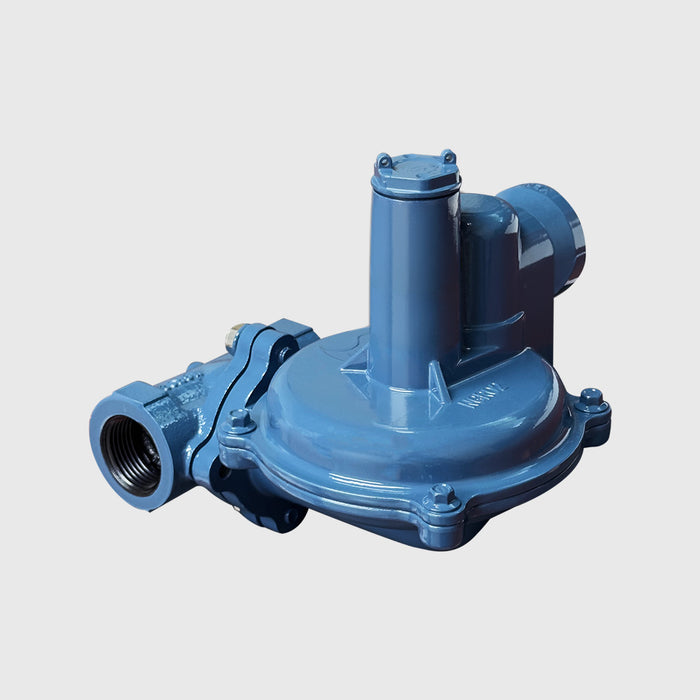

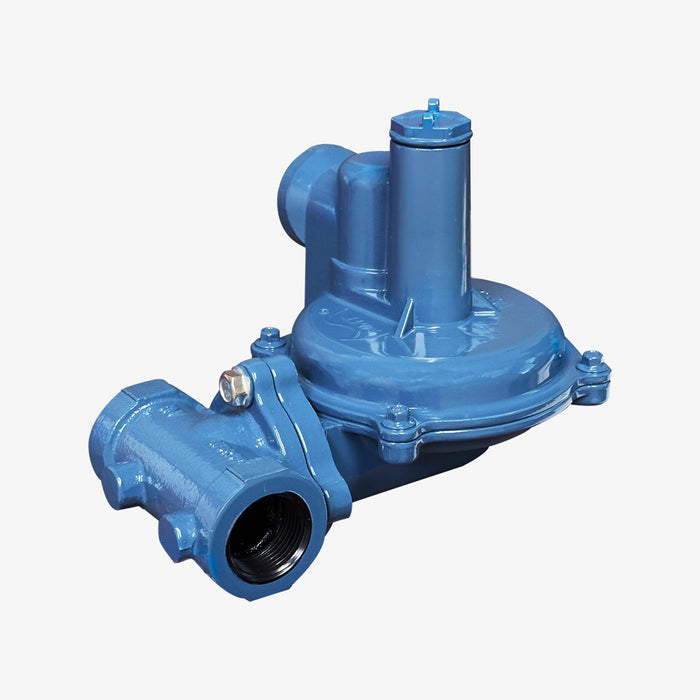

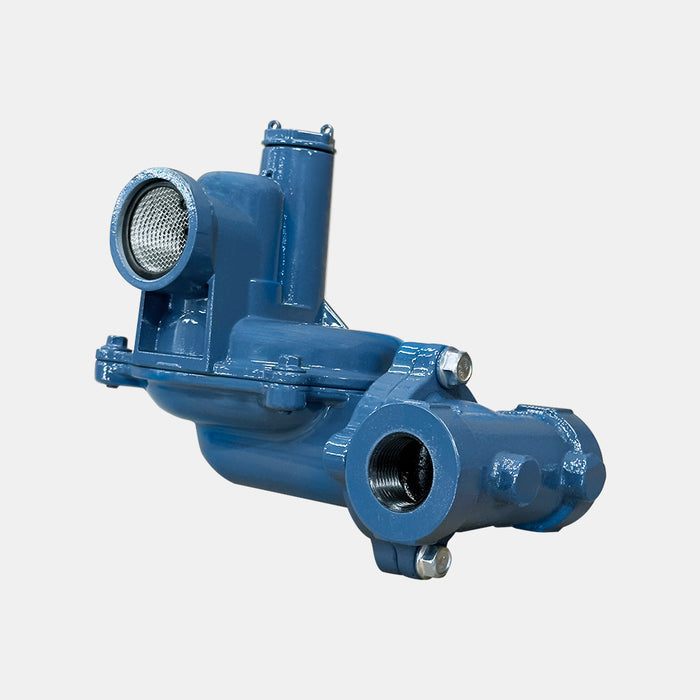

NGR02

Pipe Size: 1/2" to 1-1/4"

Outlet Pressure Range: 2" to 5 psig

The NMT® NGR02 series spring-loaded gas regulators with internal relief provide consistent and controlled pressure in a variety of residential, industrial, and commercial applications. The NGR02 meets ANSI Z21.80 for Class I, Class II, vent limiting, and OPD (Overpressure Protection Device) applications and is designed to be used in many applications where non-corrosive dry gases are used.

Features

• ANSI Z21.80 certified
• Vent limiter option
• Internal Relief - OPD
• Outlet pressures up to 5 psig
• Conforms to ANSI B109.4
• Corrosion-resistant exterior

Specifications

• Gas types: Natural gas, LPG, other non-corrosive dry gases
• Maximum inlet pressure: 10 to 125 psig per orifice
• Maximum emergency inlet pressure: 175 psig
• Operating temperature: -40°F to +140°F

Resources

• NGR02 Spec Sheet
• NGR02 Relief Curves
