True Union NSF Food-Safe Solenoid Valves – 110V, Normally Closed (½" & ¾")

Our True Union NSF Food-Safe Solenoid Valves are engineered for high-purity applications where safety, sanitation, and rapid serviceability are essential. Available in ½" and ¾" sizes, these valves feature NSF 61-G and NSF 372 certifications—ensuring they meet the strict requirements for drinking water and food/beverage systems.

Designed with true union sanitary connections, these valves allow fast, tool-friendly removal, system cleaning, and maintenance—ideal for environments that require routine washdowns or quick component replacement.

Offered in two coil configurations:

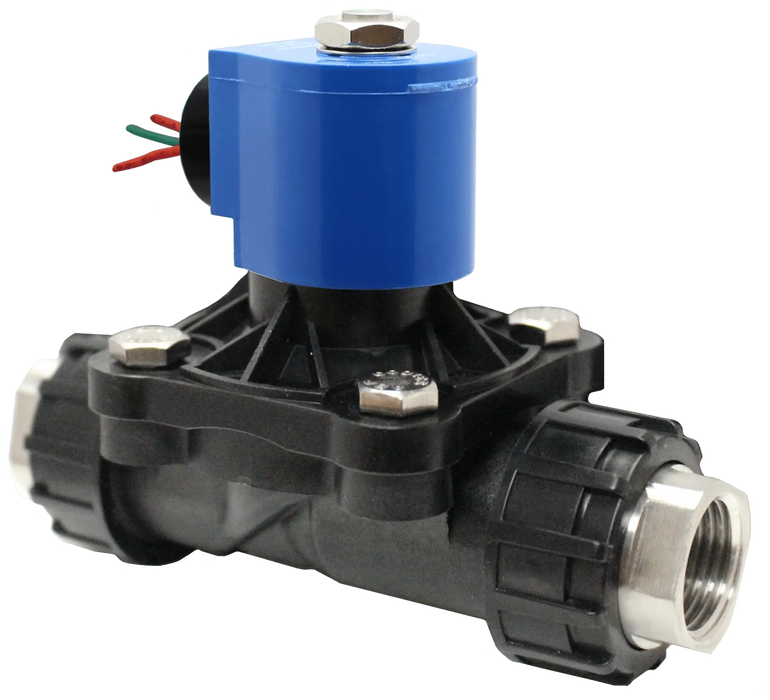

• Lead-wire coil versions (24" wire leads)

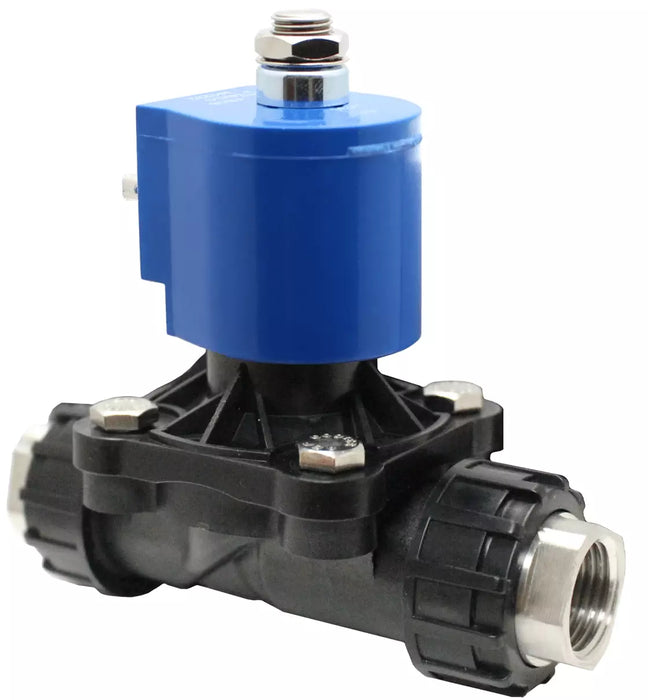

• Terminal-coil versions (quick-connect coil terminals)

Both variants utilize a high-temperature NEMA-rated nylon coil housing, rated for 100% duty cycle, and all models come as normally closed (NC) 110V units for dependable shutoff.

NSF Certified for Food, Beverage & Drinking Water

These valves carry:

• NSF 61-G certification (drinking water system components)

• NSF 372 certification (lead-content compliance)

Perfect for use in applications where hygienic handling and potable-water safety are required.

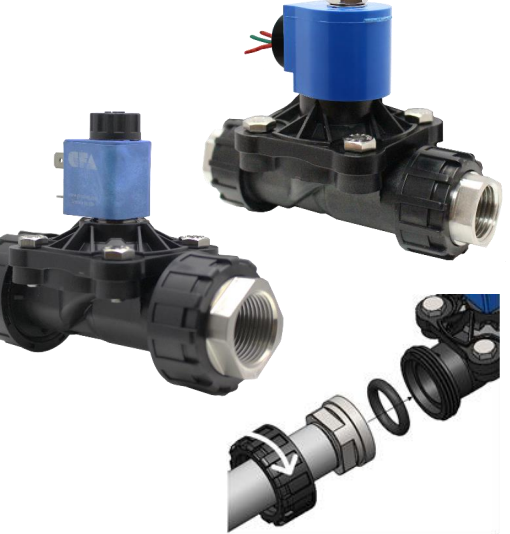

Sanitary True Union Design

True Union fittings provide:

• Quick swap-out without disturbing existing piping

• Fast field servicing and cleaning

• Compact, efficient piping layouts

• Wrench flats to protect valve bodies during installation and removal

This design is ideal for OEMs seeking to reduce plumbing complexity, system downtime, and service costs.

Recommended Applications

These valves excel in high-purity and food-safe systems such as:

• Water treatment (ozone systems, UV, RO, sterilizers)

• Drinking water delivery

• Car wash equipment

• Food & beverage production (bottling, craft beverage systems, misters)

• Clean-in-place (CIP) operations

• Commercial buildings & medical facilities

• Hospitals, clinics, and sanitation systems

• Agricultural & greenhouse equipment

Construction & Materials

Engineered for durability, cleanliness, and corrosion resistance:

Wetted Components

• Valve Body: Nylon-6 with 30% glass fill

• True Union End Fittings: 300 series stainless steel

• Operator Tube: 300 series stainless steel

• Plunger & Tube Head: 400 series stainless steel

• Springs: 300 series stainless steel

• Shading Ring: Copper (standard) or silver

• Seals: EPDM or FKM (depending on configuration)

Coil Housing Options

• T20 & T21 Series

  • ½" NPT conduit hub with 24" lead wires (NEMA 4/4X, IP65)

  • DIN 18mm Form A (NEMA 4/4X, IP65)

  • Optional junction boxes

• TP3 Series

  • 18" lead wires (IP65)

  • DIN 11mm Form B

• All coils rated for 100% duty cycle

Performance Specifications

• Pipe sizes: ½" and ¾"

• Flow factor (Cv): 4.3

• Operating pressure differential:

  • Air/Gas: 0–200 PSI (varies by model)

  • Water: Up to 150 PSI (model-dependent)

• Maximum fluid temperature: 180°F (82°C)

• Ambient temperature rating: 32°F to 125°F (0°C to 52°C)

• Operation: Normally Closed (NC), pilot-operated, 2-way

• Voltage: 110V AC

• Duty cycle: 100%

Certifications

• NSF 61-G (drinking water components)

• NSF 372 (lead-free compliance)

• UL Recognized (T20 & T21 series)

• cURus (TP3 series)

• CSA Certified (optional with suffix)

• CE Certified

These valves meet demanding regulatory standards for sanitation, electrical safety, and potable-water compatibility.

Why Choose True Union NSF Solenoid Valves?

• Food-safe, drinking-water-safe construction

• Simplified maintenance and quick servicing

• Reduced plumbing footprint for OEMs

• Hygienic materials and corrosion-resistant internals

• Multiple coil configurations for integration flexibility

• Reliable operation under continuous duty
